SLEEK, SIMPLE, SMART TRACK LIGHTING SOLUTION
167.2
LUMINAIRE LUMENS
PER CIRCUIT WATT
The new Zipline LED lighting system offers unparalleled flexibility in terms of lighting layout and scheme design. The Zipline combines architectural impact, longevity and supreme efficiency (167.2 LL/CW) providing the lighting designer with the perfect lighting solution for building-wide applications. With five power options, broad, narrow and double asymmetric light distributions and a variety of accessories the Zipline is a truly versatile lighting system.

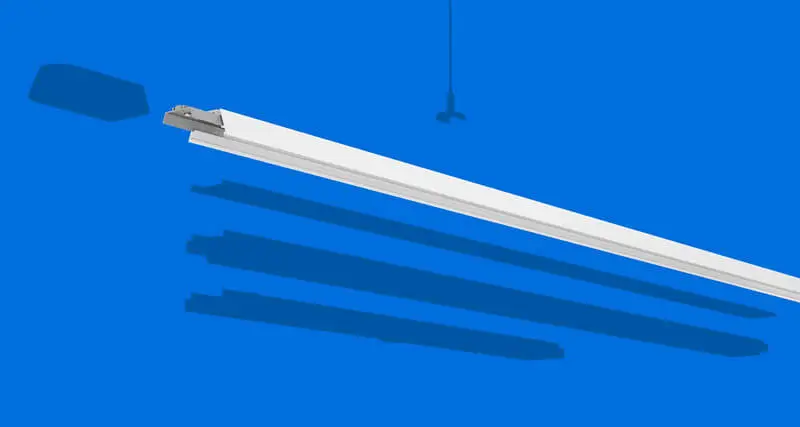

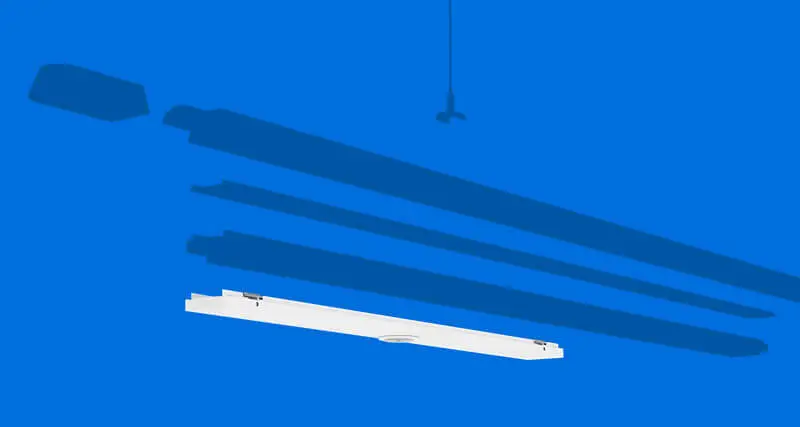

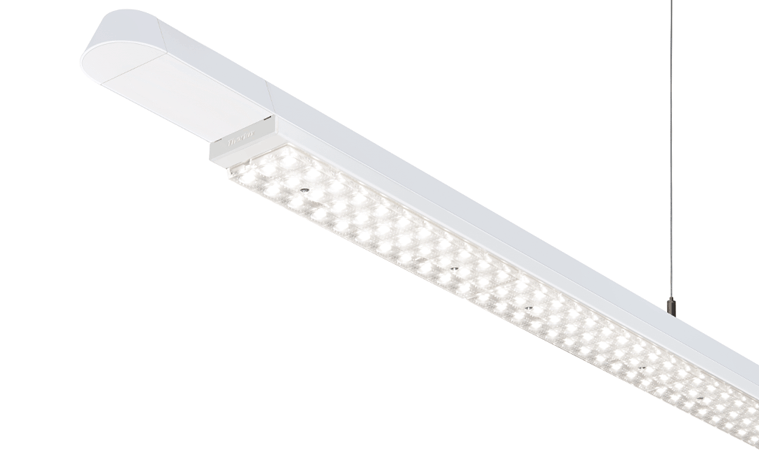

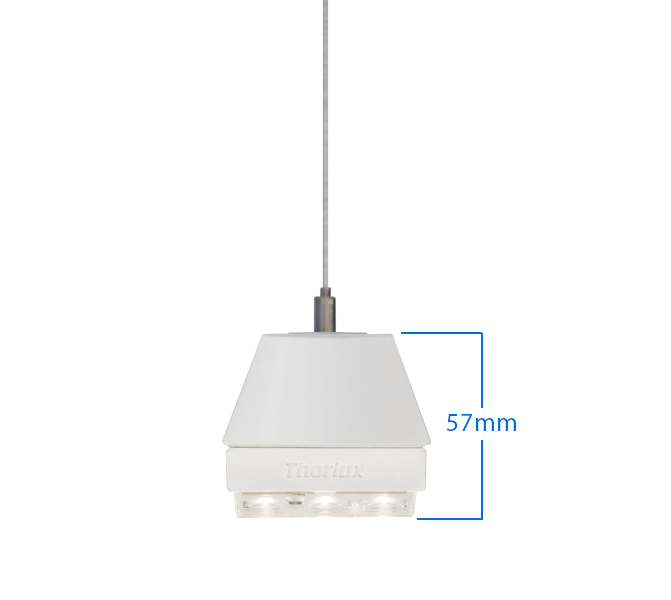

The extruded aluminium trunking body of the Zipline provides a sleek, rigid but low weight luminaire which takes advantage of the latest LED technology. The luminaire modules are designed to simply snap into place, connecting into sockets located at regular intervals, ensuring fast and flexible installation.
Pre-wired lengths up to 4.5m long are joined together to form the required run. The factory installed wiring looms (7-core 1.5 mm² PVC as standard) are simply plugged together and provide electrical connection sockets at 750mm intervals. Luminaires may be installed continuously, or with either 750mm or 1500mm spaces between them.
All luminaire modules are based on a standard length of 1500mm. Options include narrow, broad and double asymmetric distributions, 5 output levels and conventionally switched or dimmable circuit types or with integral Smart controls.
Options include a presence detector module for automatic control (if required when Smart luminaire modules are not used) emergency lighting modules using the Scanlight AT LED downlight, and spotlight modules. All modules are 750mm long.

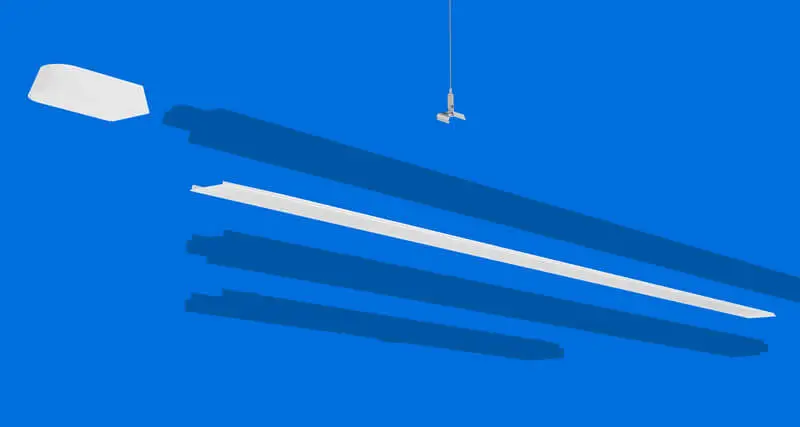

Wire suspensions or surface mount kits, end kits and PVC infill lids are all used to put the finishing touches to Zipline installations.
1 kit required per row, includes live and dead end

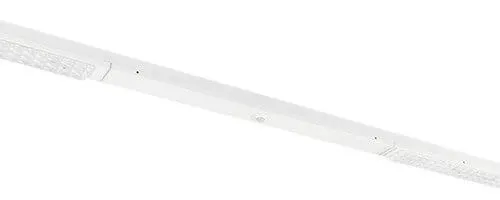

A cost effective lighting control solution, without the luxury features of a full Smart System, PIR modules can be selected and simply plugged in, to provide passive infra-red detection for each connected run. As many PIR modules as required for suitable detection coverage can be fitted and the entire run will be switched as a whole group.

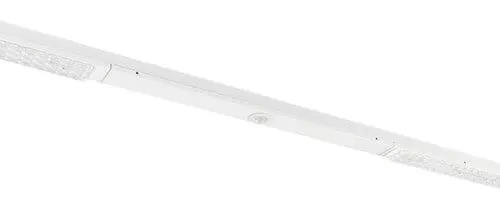

Emergency lighting is an essential requirement of all workplaces and Zipline offers the choice of either emergency versions of luminaires, or dedicated modules that utilise the reliable and unobtrusive Scanlight AT LED downlight. The superb optical performance of the Area and Corridor lenses minimises the number of modules needed.

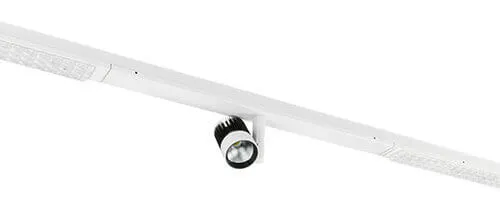

Adjustable single LED spotlight ideal for reception and showroom areas.

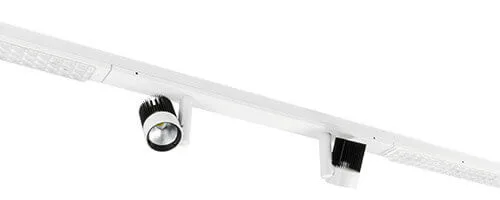

Adjustable twin LED spotlight ideal for reception and showroom areas.

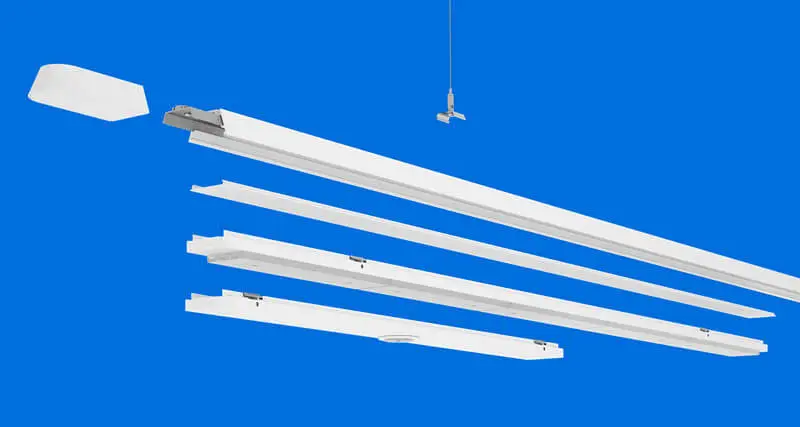

The Zipline system has been designed for speed of installation. Once the trunking lengths are secured in position the modules are simply offered up and plugged in.

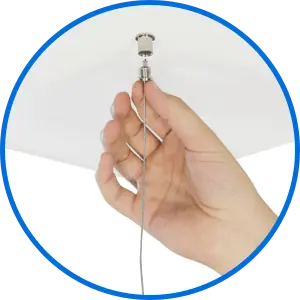

1. Fix Suspension Wires
Maximum spacing of 2500mm between suspension fixings. Maximum weight at each suspension point assuming fully loaded assembled system = 5 kg

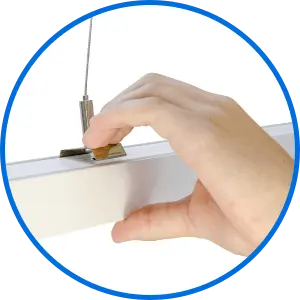

2. Clip trunking to suspension

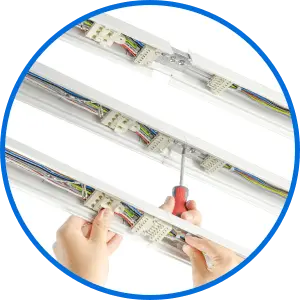

3. Join Trunking lengths together

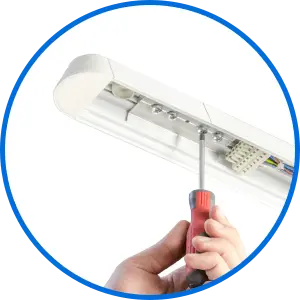

4. Fix end kits and wire supply
For full wiring details see Zipline installation leaflet

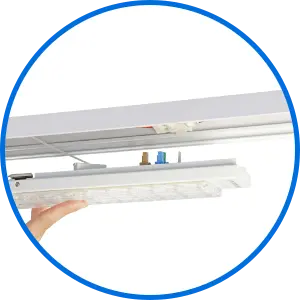

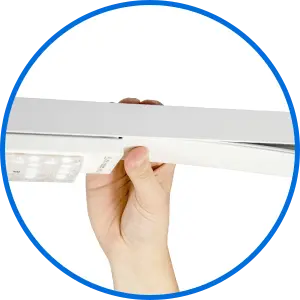

5. Clip modules onto trunking
6. Fit the snap-in infill lid
Installation of Zipline requires minimal wiring points compared to that of individual luminaires. Over the course of a project this will drastically reduce labour costs whilst adding future flexibility if changes are required.

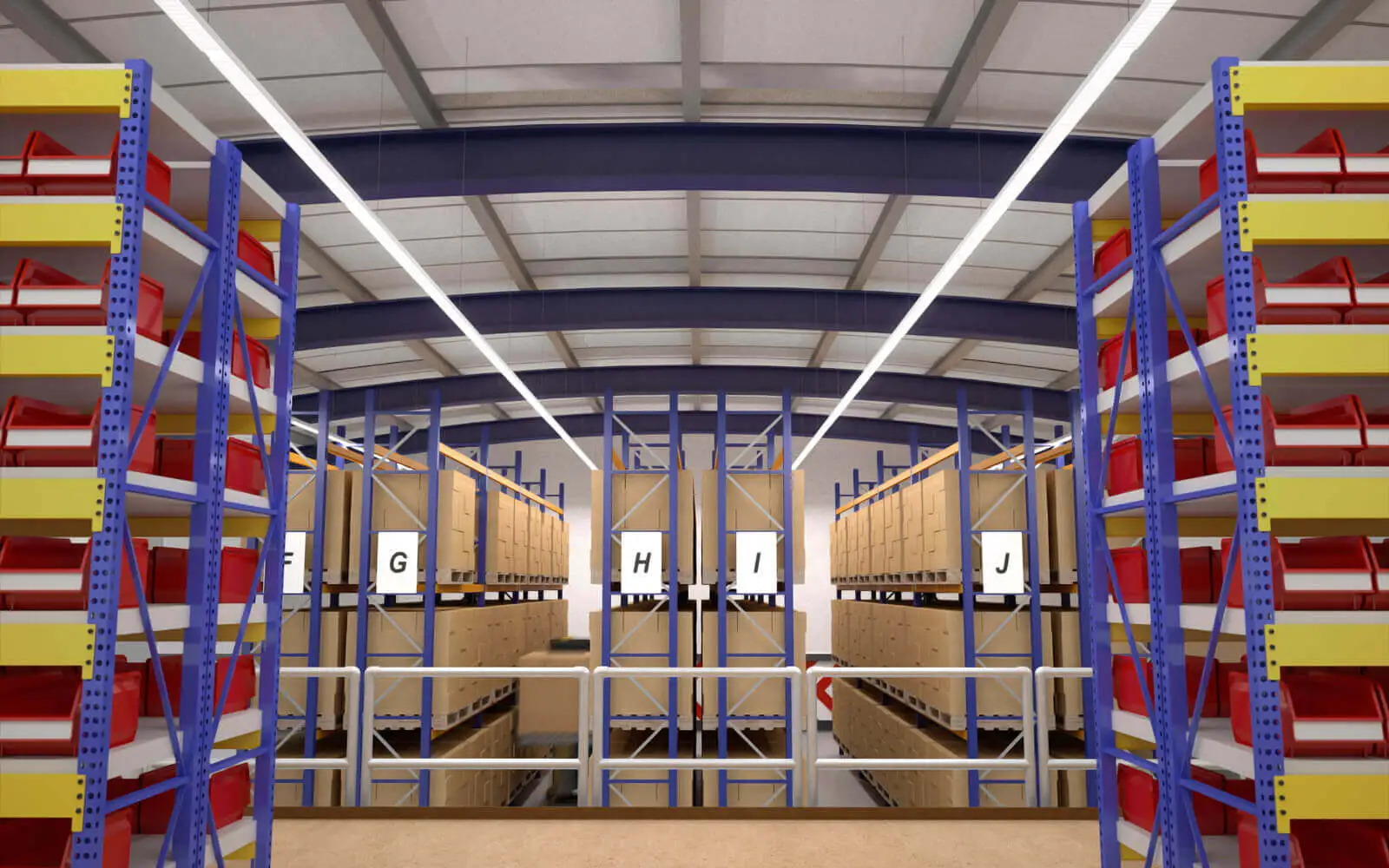

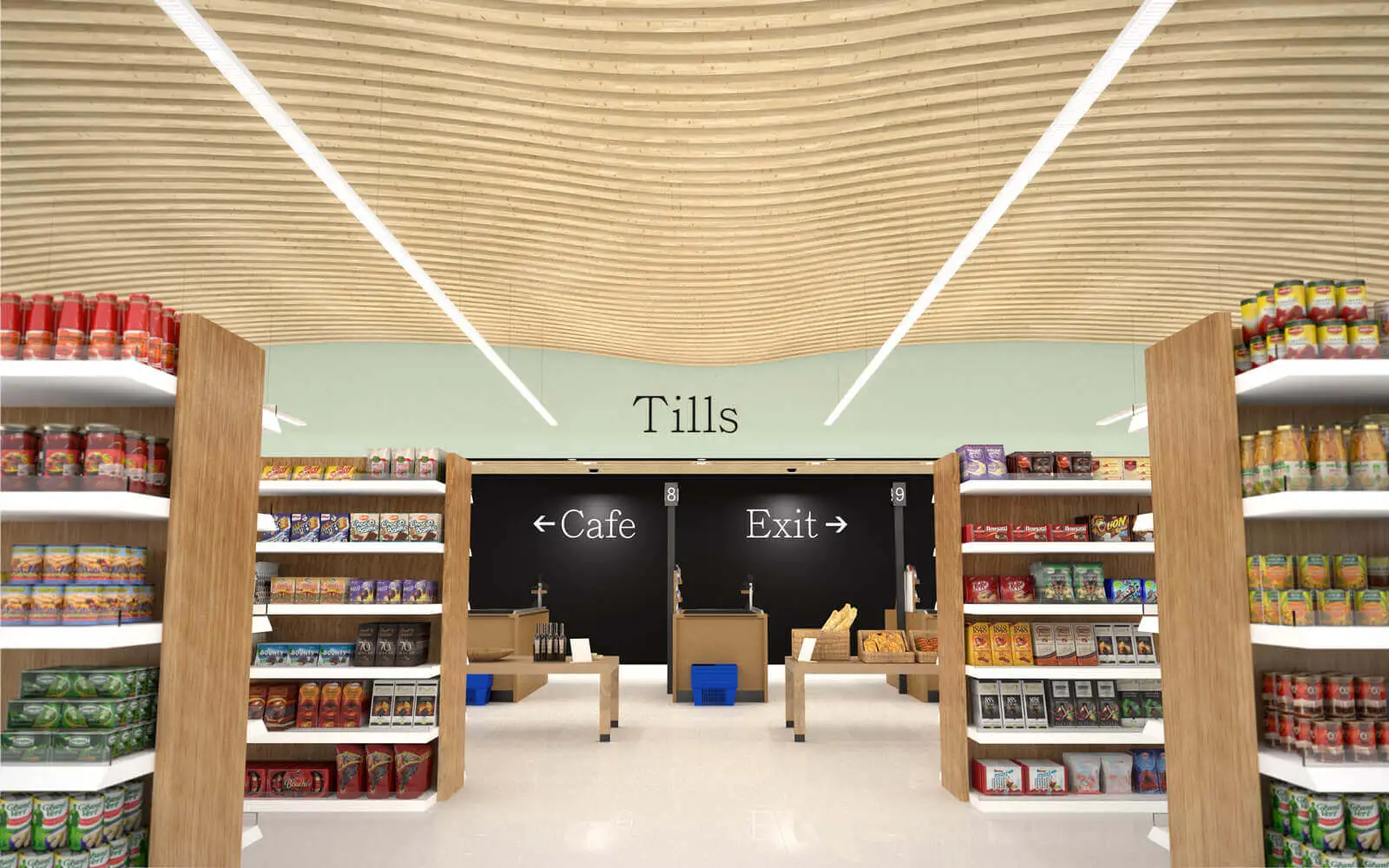

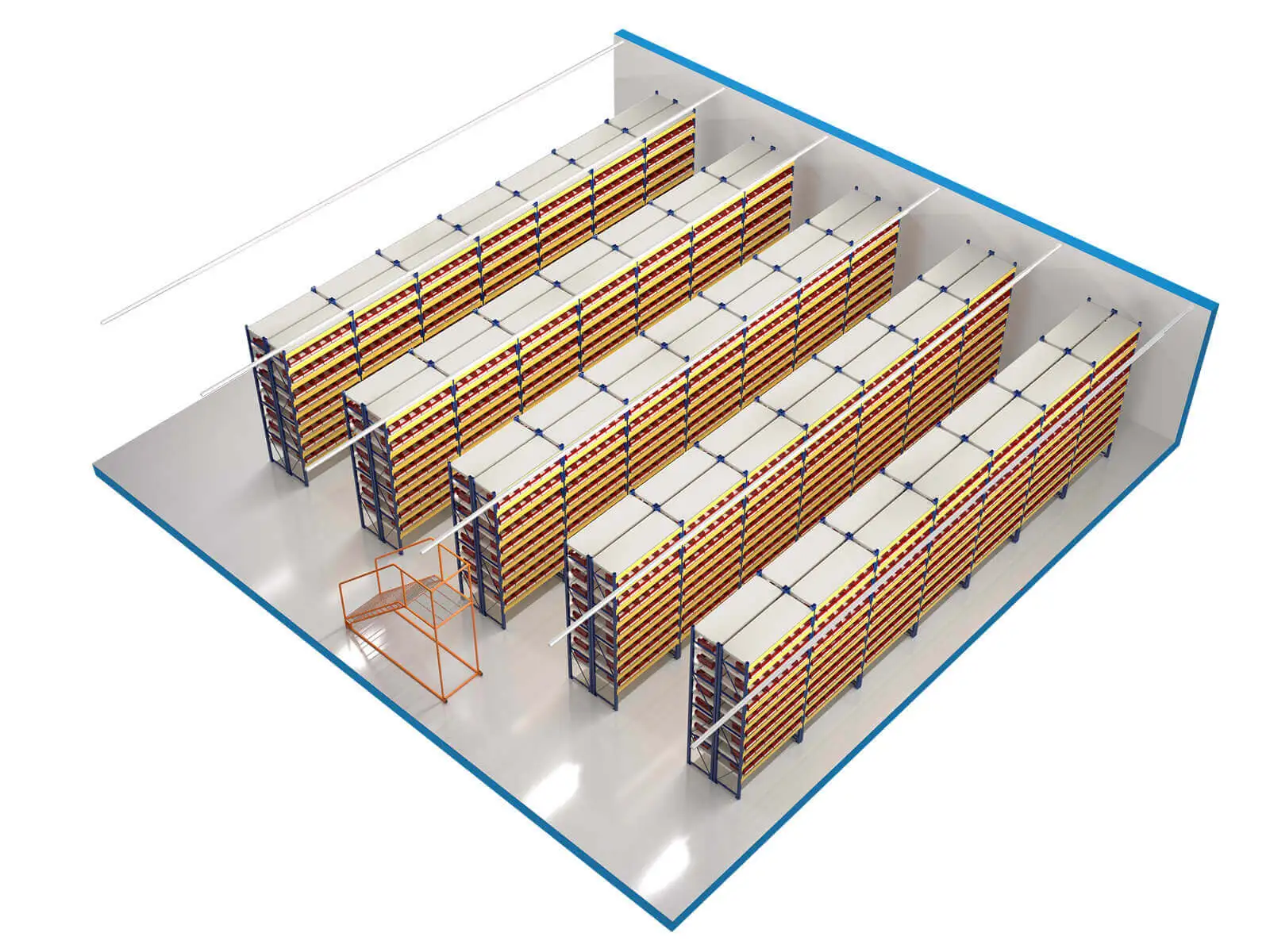

Zipline is an ideal lighting solution for many applications. From decorative display lighting in retail used to highlight products, to high output narrow distribution for warehouses, the Zipline system is the lighting solution for virtually all situations.

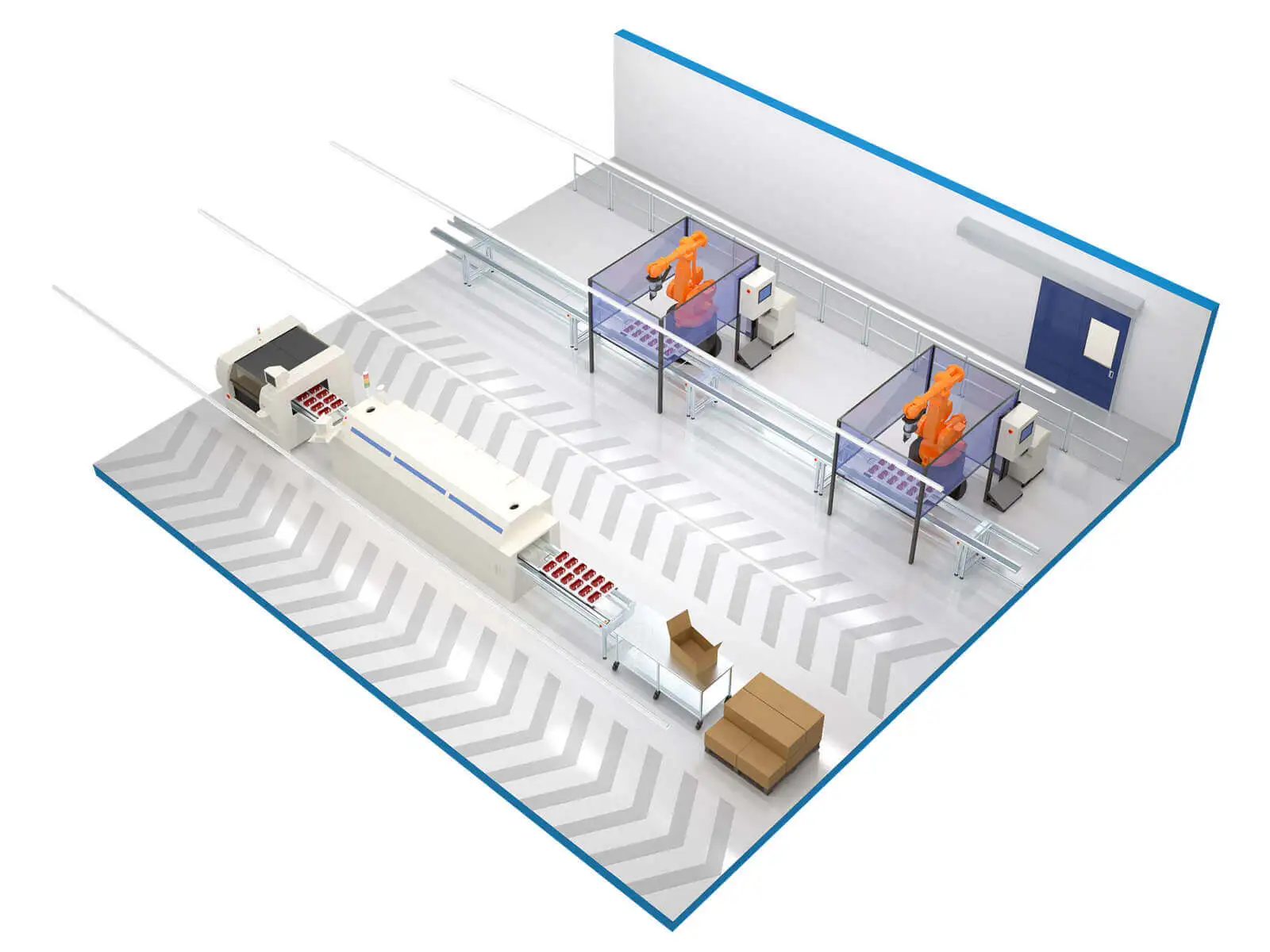

Area - 14m x 14m
Zipline system - 4 Rows : 4 Wiring Points
Area - 14m x 14m
Zipline system - 4 Rows : 4 Wiring Points

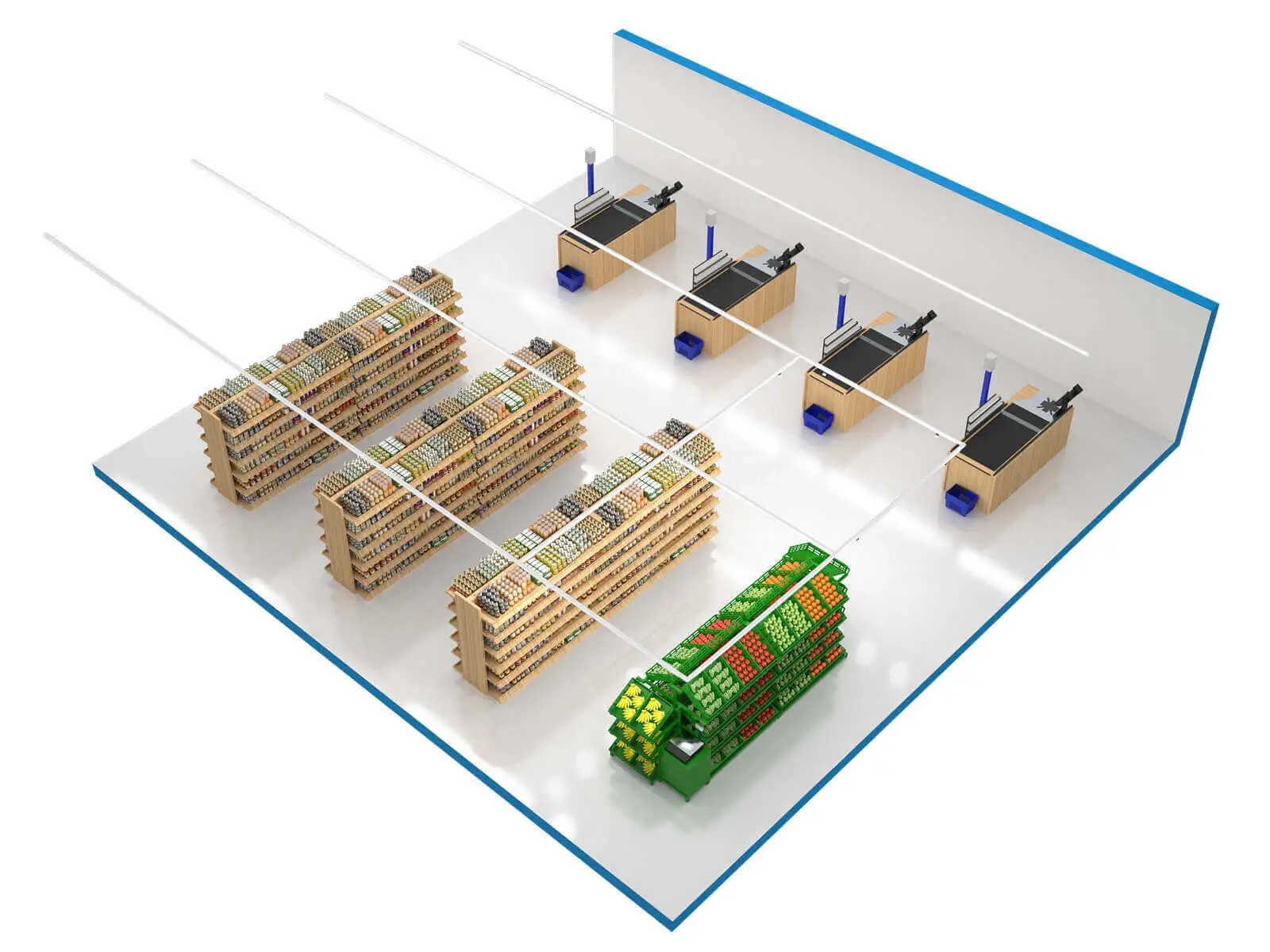

Area - 14m x 14m
Zipline system - 4 Rows : 1 Display Section : 6 Wiring Points

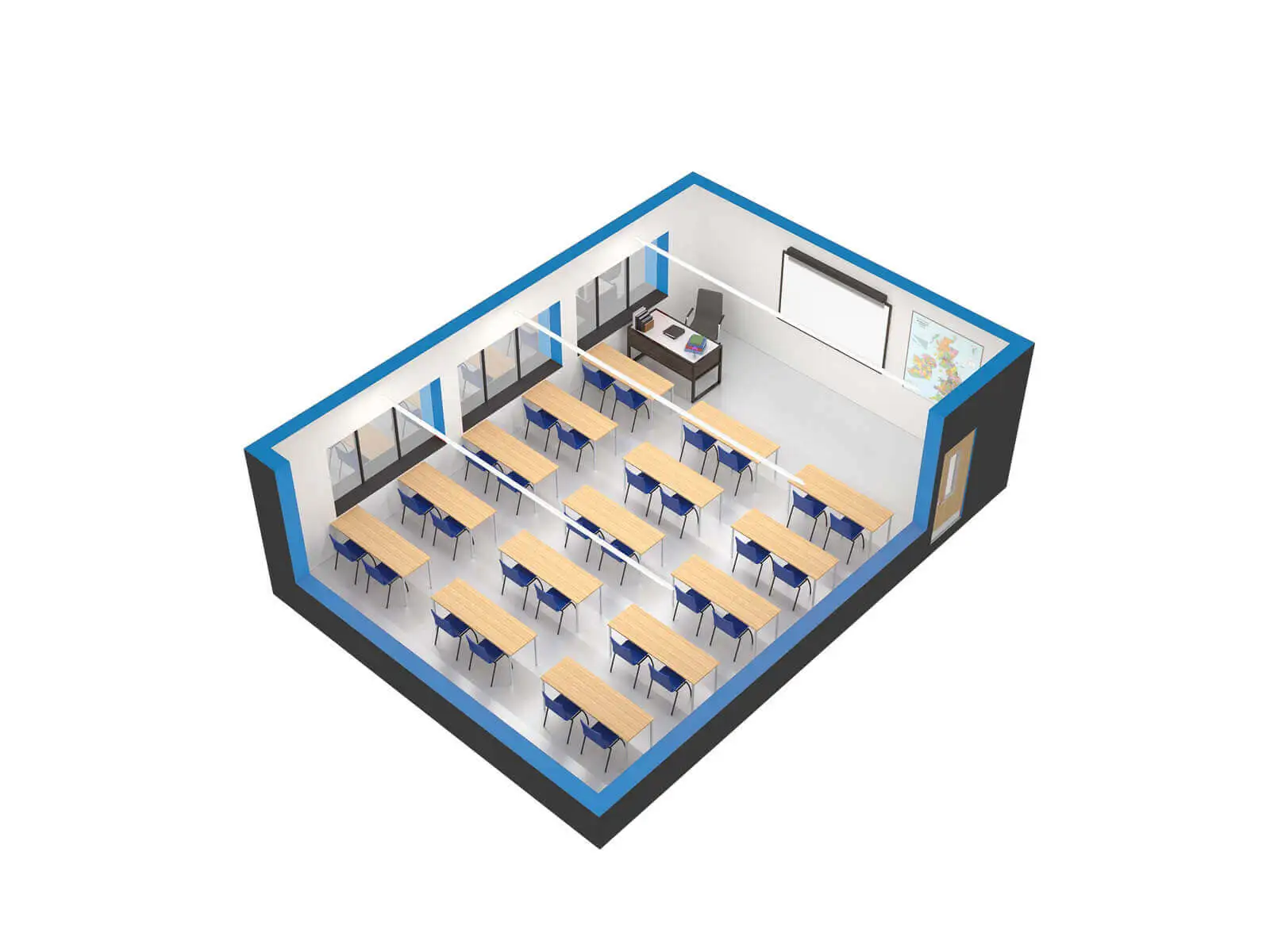

Area - 8 m x 7 m
Zipline system - 3 Rows : 3 Wiring Points

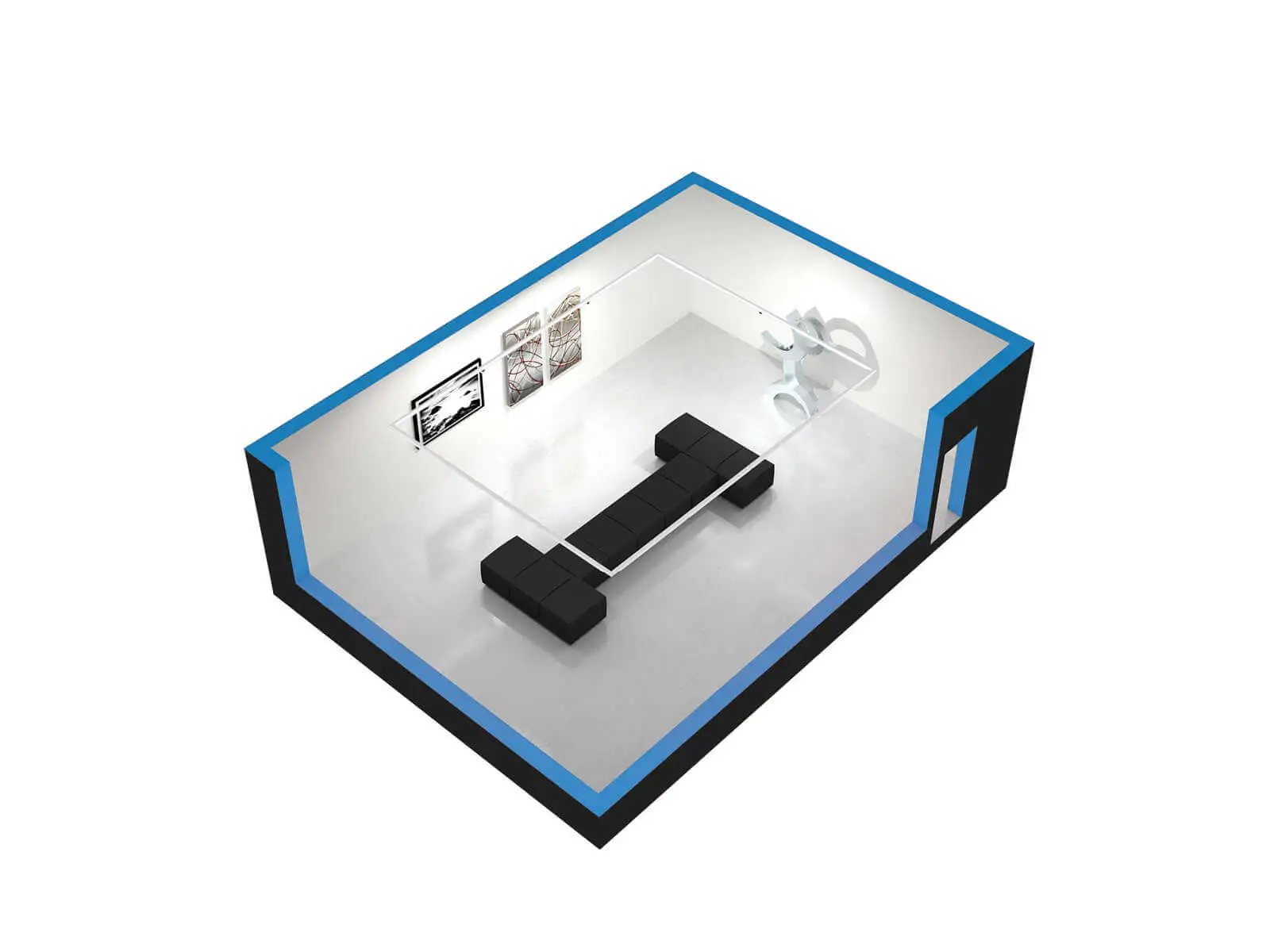

Area - 8m x 7m
Zipline system - 6m x 4.5m : 1 Wiring Points
