Introducing Passway
Passway is a very high performance lighting bollard with a contemporary appearance. A choice of pathway or area light distributions are selectable on site. The robust construction and excellent performance ensure the Passway is suitable for a wide variety of applications.
Engineered to perform
The SmartScan Radar sensor uses the latest high-frequency technology. Housed within the bollard to protect sensitive components, it delivers the significant benefits of the SmartScan wireless control system.
The sensor’s position provides 360º detection, ensuring the luminaire will react when approached from any direction. The polycarbonate housing maintains the impact and vandal resistance of the bollard.
- Radar presence detectors are integral to the luminaire, providing improved vandal resistance and aesthetics
- Unique 24 GHz sensor with increased sensitivity to small movements whilst being less prone to false detection than traditional ‘microwave’ technology
- Fully programmable light levels, detection range (sensitivity), time delays and security levels via the SmartScan Programmer
- New advanced SmartScan technology allows photocell control with the LED lamp on or off
- Full status monitoring via the SmartScan website
- Automatic testing and record keeping of emergency luminaires via the SmartScan website
State of the art optics

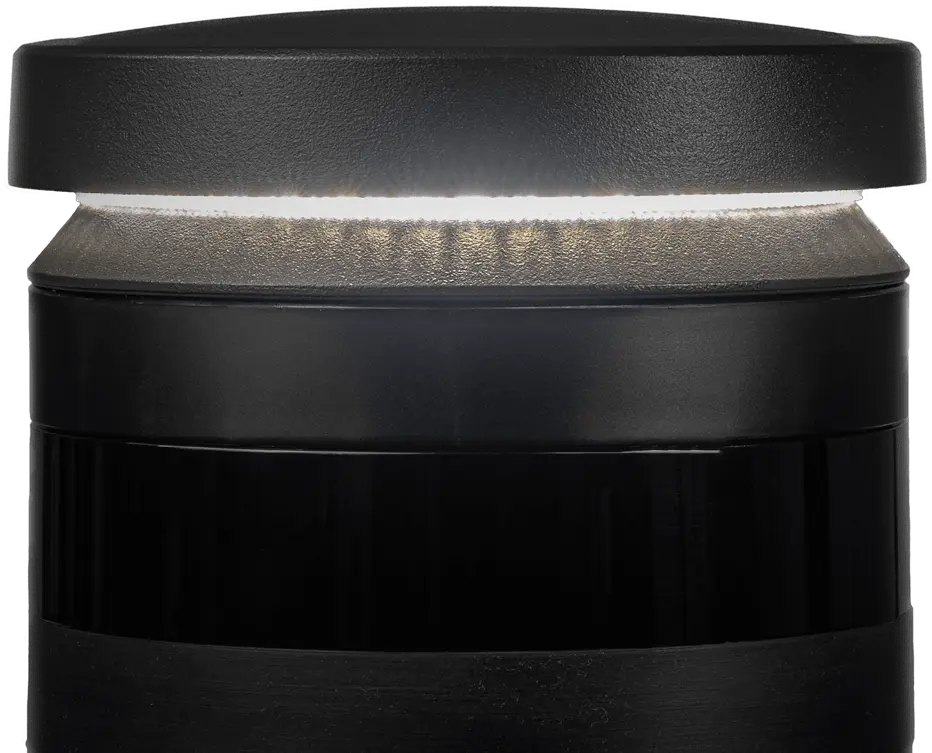

Contained within the IP66, IK10 head unit, custom designed, high performance optics direct the light exactly where it is needed. A dedicated lens for each LED ensures the most efficient distribution of light resulting in highly impressive luminaire spacings whilst still maintaining uniformity.

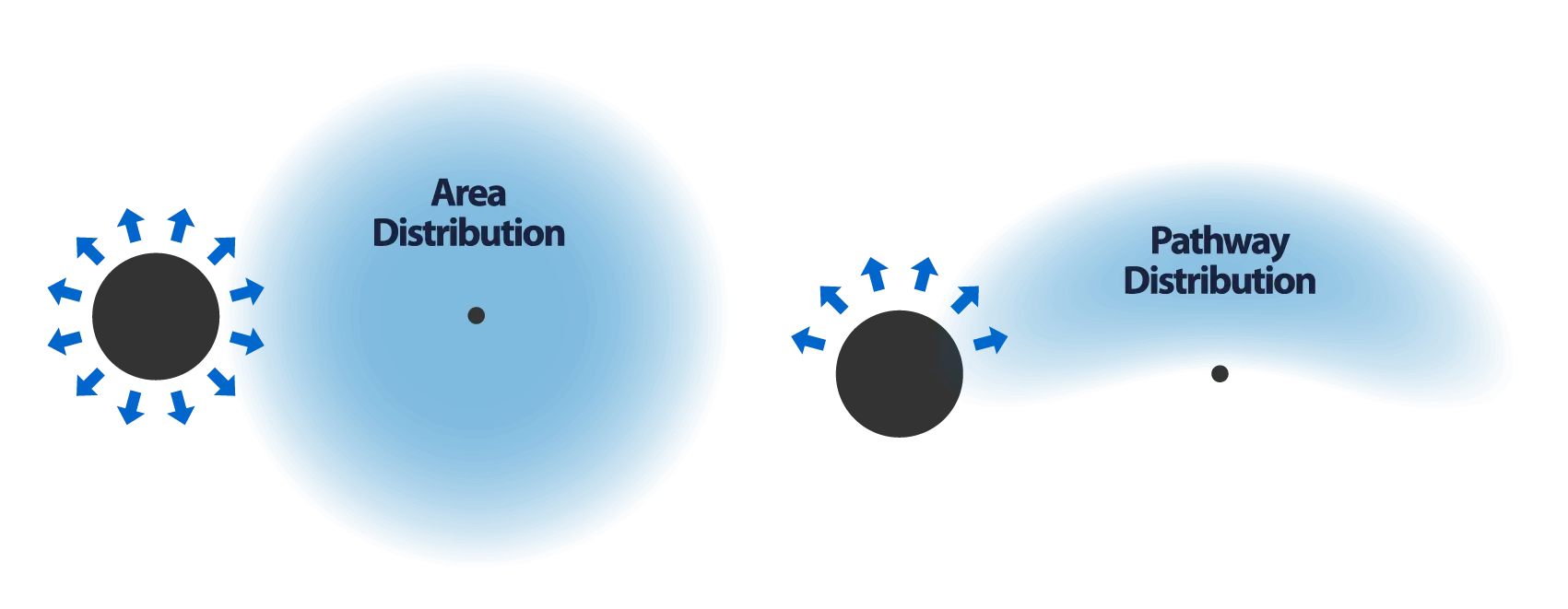

Each bollard has two light distribution settings selectable via an internal switch. The area distribution provides 360° light output whilst the pathway distribution gives 180°.
All versions produce less than 2% upward light making Passway suitable for rural as well as urban environments.
On-site selectable distribution
The internal selector switch provides on-site choice between area and pathway distributions.
When selecting the pathway distribution, only one side of the Passway illuminates producing a 180° light output; simplifying ordering and providing flexibility during installation.
Installation options

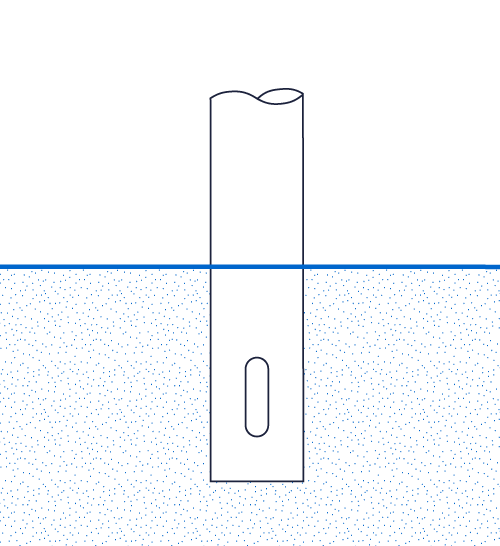

Root Mounting
Rigid fix
Surface Mounting
Rigid fix

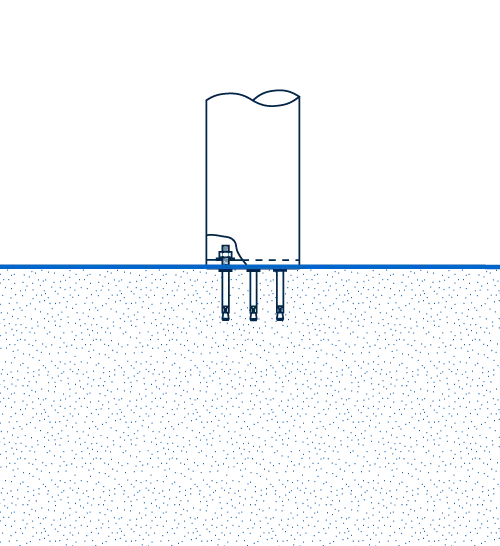

Direct
Surface Mounting
Rigid fix

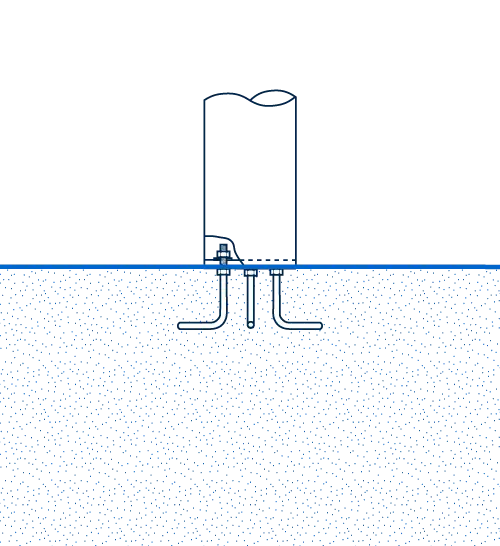

J-Bolt Kit
Surface Mounting
Rigid fix

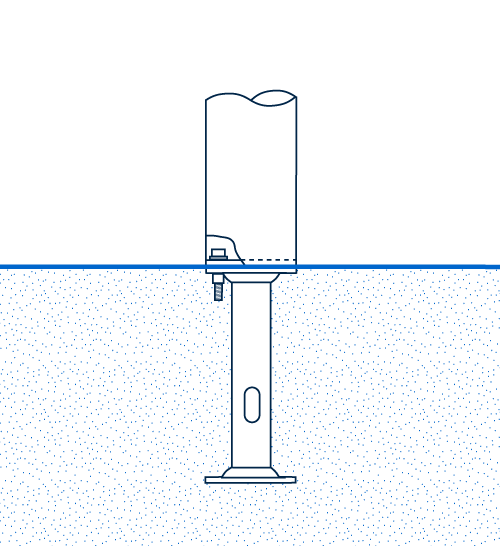

Root Kit
Guiding the way in an emergency
The Passway is available with integral emergency and wireless SmartScan Emergency control gear options to light the way to fire assembly points outside a building.
The SmartScan Emergency testing system automatically tests the status of the luminaire and components in accordance with BS 5266-8:2004 and reports back to the SmartScan website when installed with a SmartScan Gateway.
Maximise spacings and use fewer luminaires
The high performance optics allow the Passway to be spaced further apart than conventional bollards, requiring fewer luminaires to light a space.
Uniformity of light is often problematic when using bollards, resulting in close spacings and over lighting. Due to the unique light distribution of the Passway, high uniformity is still maintained even when spaced up to 9m apart.

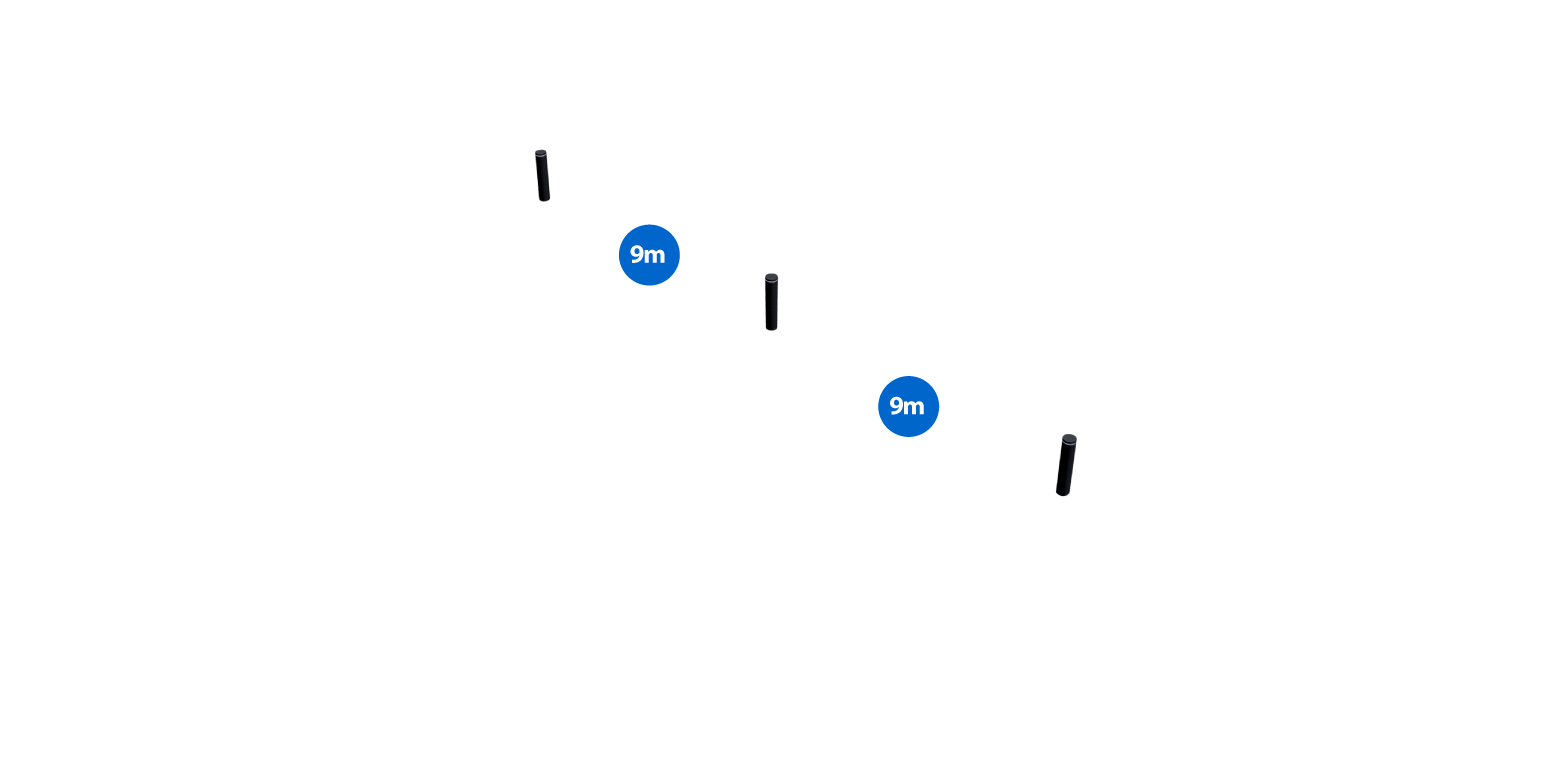

Pathway Example
9 m
Spacings
20 lux
Average Illuminance
0.26
uniformity

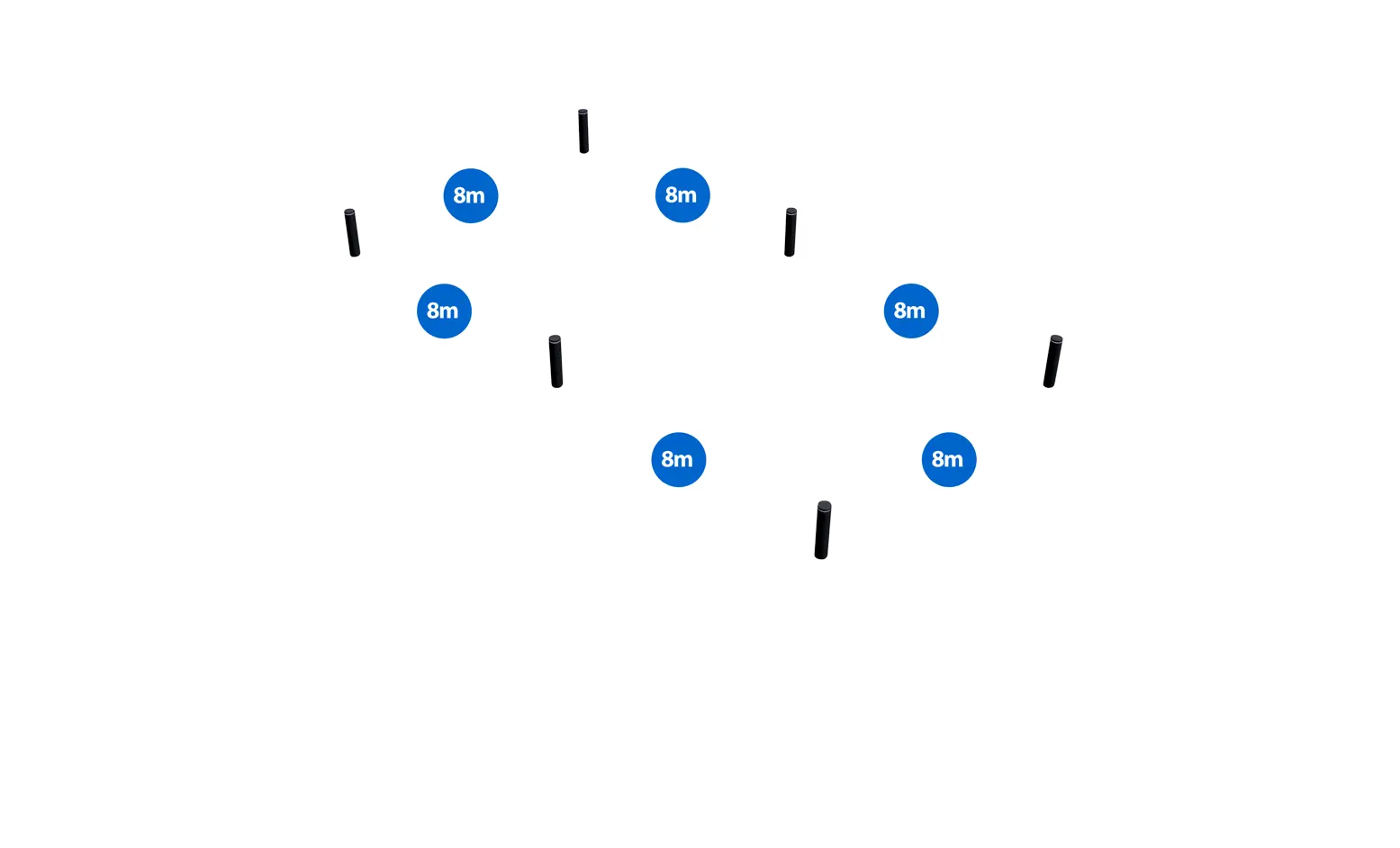

Area Example
8 m
Spacings
20 lux
Average Illuminance
0.32
uniformity
Easy installation

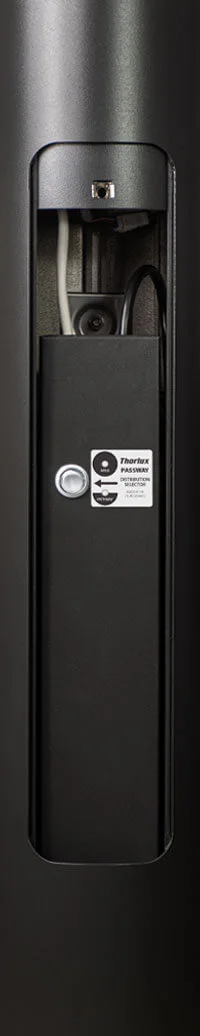

The large access door on Passway makes installation simple. The access door is vandal resistant and uses a single tamper-resistant fixing bolt. The large entry area provides easy access to secure the Passway into position and terminate the supply cables. The screwless terminal block adds further simplicity.

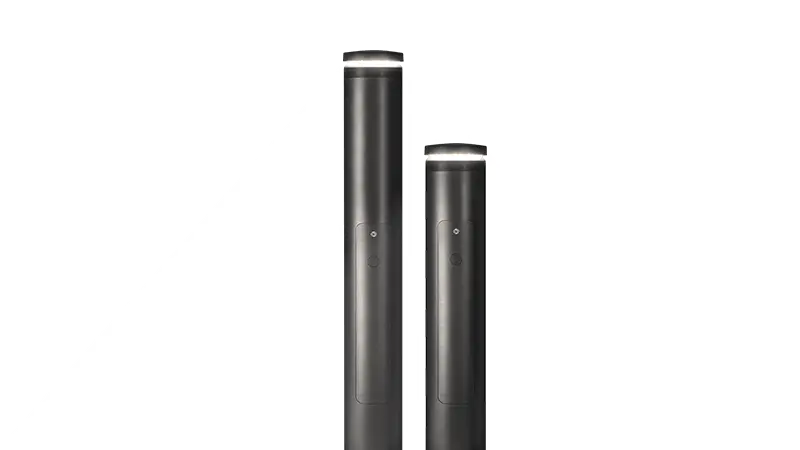

Solutions for all applications

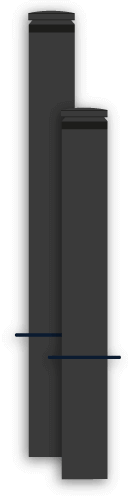

Root mounting
Area - 11W
Pathway - 5W
900 mm
1100 mm
Root mounting
Area - 21W
Pathway - 11W
900 mm
1100 mm

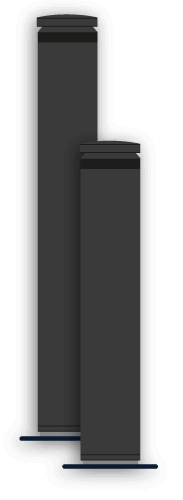

Surface mounting
Area - 11W
Pathway - 5W
900 mm
1100 mm
Surface mounting
Area - 21W
Pathway - 11W
900 mm
1100 mm
